Lawn Sprinkler System - Description
- Irrigation System for Lawns
- Hose Length: 50m
- Hose Line Specification
- 30m Garden Hose Pipe (FloPro®) x2 (60m)

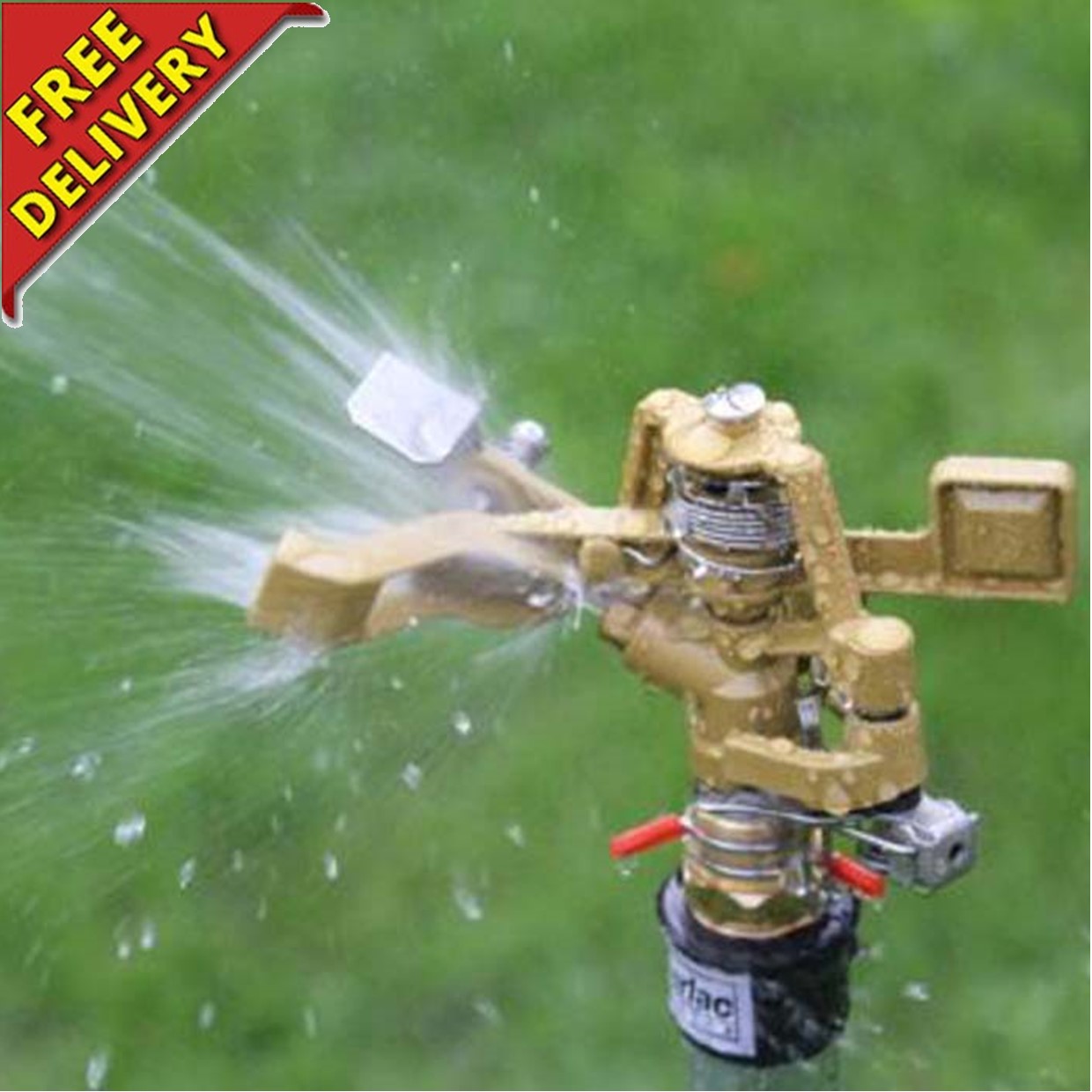

- Sprinkler Specifications
- Type: Pulse
- Made from Solid Brass & Alloy
- Deflector Plate
- Flow Coverage: 450m2
- Total Coverage: 900m2
- Flow Rate: 1040 L/H
- Features of Kit
- Modular: Link Several Kits Together to Suit Garden Size (Hose Connector / Joiner Required)
- Modify: Kit Includes 'T' & 'L' Connectors to Modify & Custom Build System
- Large Coverage: 2 Spinklers Give a Coverage of 900m2
- Full Kit Contents
- 16mm Main Feed Tube (50m)
- 16mm Barb 'T' Connector (Qty: 2)
- 16mm Barb 'L' Connector (Qty: 2)
- Rolling Base (Qty: 2)
- Pulse sprinkler (Qty: 2)
- Hose Connector (Qty: 2)
- Outside Tap Adapter 3/4” BSPF (Qty: 1)
- Works With Our Solar Powered Water Timer (Requires Hose Adaptor)
- Works With Our Water Butt & Water Butt Pump
- Manufacturer: Darlac & Irritec
Lawn Sprinkler System - Uses
- The lawn sprinkler system is ideal for
- Watering lawns
- Can also be used on large flower beds & vegetable patches
- Suitable for medium to large sized gardens
Coming soon...
Lawn Sprinkler System - Assembly
- Measure your lawn's area
- Determine the number of kits you will require
- One kit covers 900m2 at standard water pressure
- Plan out your desired watering system
- Tip
- Lay the 16mm pipe in the sun before working
- This will soften & make pipe more workable
- Use the 'T' & 'L' connectors to change the direction of the 16mm pipe
- Decide where you want your sprinklers i.e. spaced evenly across your lawn, spaced 24m apart
- To connect the sprinkler to the 16mm line
- Use the hose connector to join the rolling base to the 16mm hose line
- Connect the rolling base to the hose connector
- Then connect the sprinkler to the rolling base
- Connect the outside tap adaptor to the 16mm pipe & screw onto treaded tap
Tips
- For an automated system choose our solar powered timer
- For a water storing system choose our water butt & pump
- You can link several systems together if your garden is larger
